Assembling Advanced Weather Stations

Please follow the assembly steps outlined below to ensure a quick, successful installation.

Once assembly is complete, please follow the steps specified in the "connecting to the agent" section to complete the installation.





  1.  Unfold the instrument tower base.

    • The base will need to be attached to suitable anchor points via the mounting points in the tower base "feet".

    • The instrument tower must be grounded.

  2.













  3.  Add the instrument pole

    • Be sure to tighten the mounting bolts at the base of the pole.

  4.





















  5.  Add the instrument crosspiece

    • The crosspiece and wind sensor mounting point come pre-assembled.

    • Be sure to tighten the mounting bolts to the instrument pole.

    • Make sure the end of the crosspiece with the wind sensor mount is pointing exactly north when the weather station installation is finished.

  6.

















  7.  Mount acquisition module

    • Mount the module on one leg of the tripod (as shown at right) using the hardware provided.

  8.





















  9.  Mount irradiance sensor.

    • Use the built-in bubble level to make sure that the sensor is level.

    • Orient the sensor so that the cable exits from the north side of the sensor (or south if in the southern hemisphere).

    • The weather station must be positioned so that there is no possibility of the irradiance sensor every being shaded by trees, buildings, etc.. at any time during the year.

    • Be sure to remove the green sensor cover once assembly is completed.

  10.









  11.  Secure irradiance sensor cable to crosspiece.

    • Use the included zip ties to secure the irradiance sensor cable to the crosspiece.

    • Do not secure the cable to the instrument pole at this point.

  12.



































  13.  Mount the wind sensor assembly.

    • Secure the wind sensor assembly to the vertical section of the crosspiece assembly tightly enough so that the assembly will not change orientation in a strong wind.

    • Make sure the wind sensors are oriented exactly east to west: the anemometer on the west side, the direction sensor on the east. The sensor cable will enter the sensor assembly from the north when the assembly is oriented correctly.

    • Use the included zip ties to secure the wind sensors cable to the crosspiece.

    • Do not secure the cable to the instrument pole at this point.

  14.



































  15.  Add instrument pole extension.

    • Lift the instrument pole and crosspiece assembly and insert the instrument pole extension into the bottom of the assembly.

    • Secure the bottom of the instrument pole extension into the base of the tripod.

  16.

















































  17.  Connect the wind sensor cable to the acquisition module.

    • The built in connector at the end of the wind sensor cable fits into a connector on the bottom acquisition module.

  18.











  19.  Mount the ambient temperature/humidity sensor on the instrument pole.

    • Position the sensor so that it will be as close as possible to the height of the PV panels.

  20.















































  21.  Attach cell temperature sensor to PV panel

    • Attach the cell temperature sensor to the back of the nearest PV panel, using the adhesive backing on the sensor.

    • Use the provided glue and Velcro to hold the sensor tight to the panel and to provide strain relief for the sensor cable (as show at right).

    • Do not add any glue to the built-in adhesive backing to attach the sensor to the panel. That will degrade its accuracy.

  22.



  23.  Zip tie all sensor cables

    • Use the provided zip ties to secure all sensor cables to the instrument tower (and panel rack for the cell temp. cable).

    • Use zip ties to secure coils of the slack sensor cables to the acquisition module

  24.

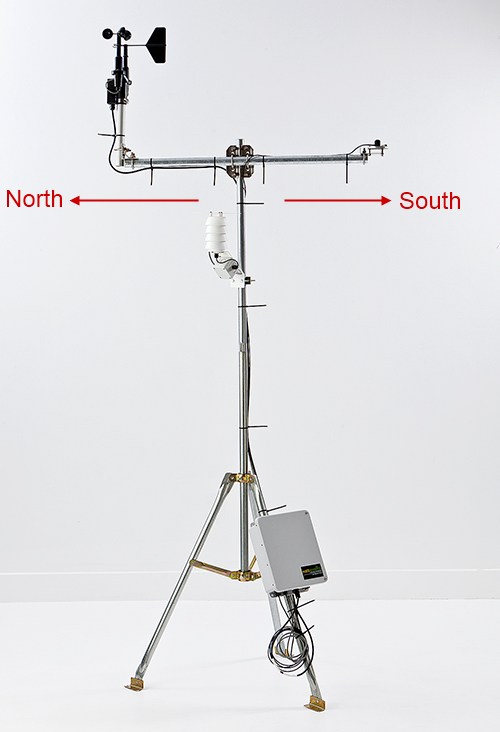

  25.  Final orientation check

    • Verify that the wind sensors are oriented along an east-west axis.

    • Verify that the wind/irradiance crosspiece is oriented nort-south, with the irradiance sensor on the south end.

    • Verify that the irradiance sensor is level.

  26.





  27.  Connect weather station to the agent

    • The station is now ready to connect to a WattMetrics acquisition agent. Please see the "connecting to the agent" section for more detail.







(click any image for more detail)

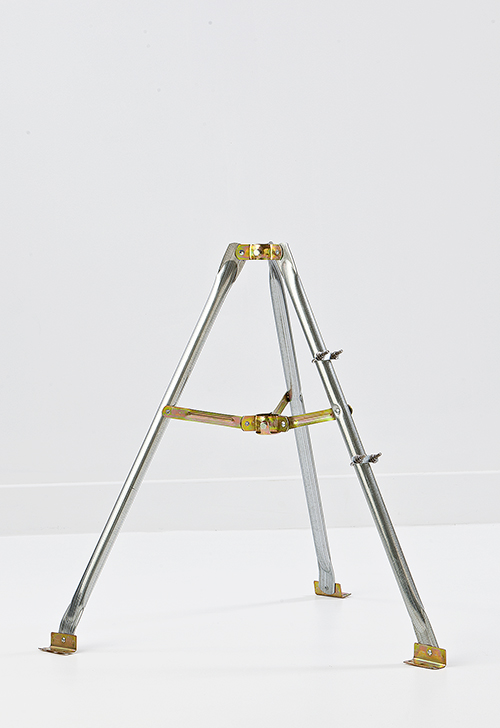

Step 1: set tower base

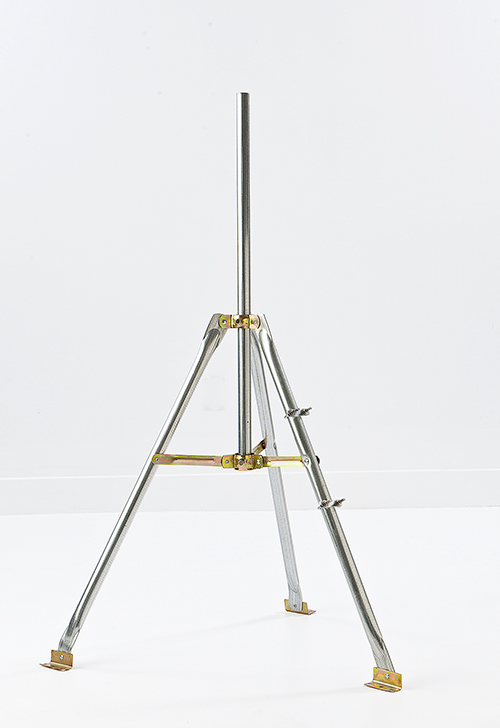

Step 2: add instrument pole

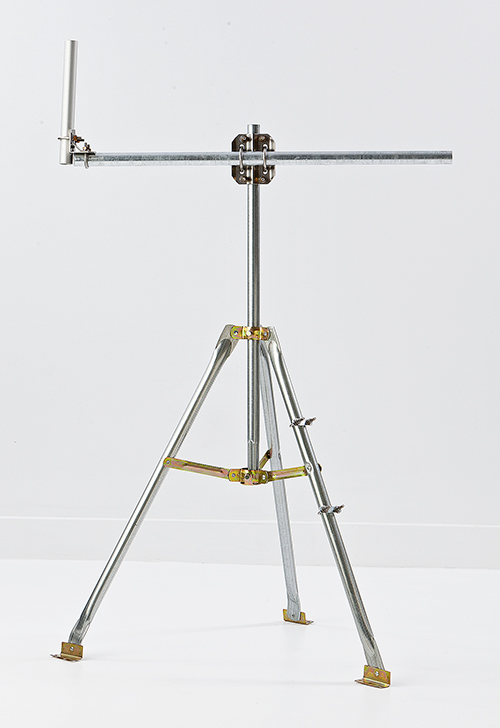

Step 3: add instrument crosspiece

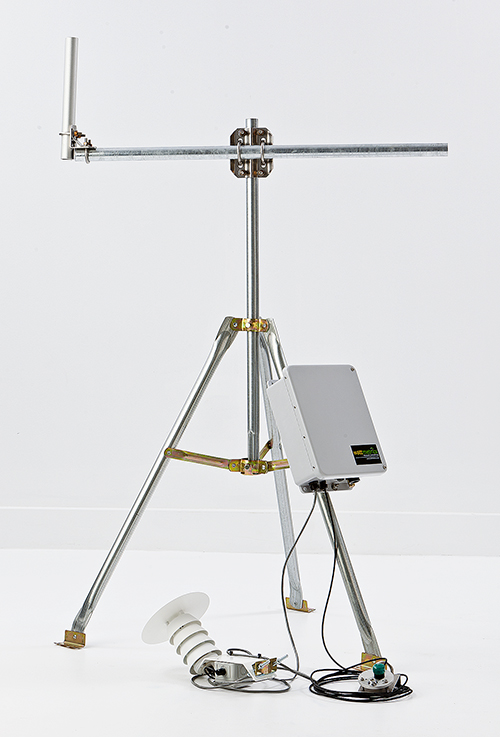

Step 3: mount acquisition module

Step 5: mount irradiance sensor

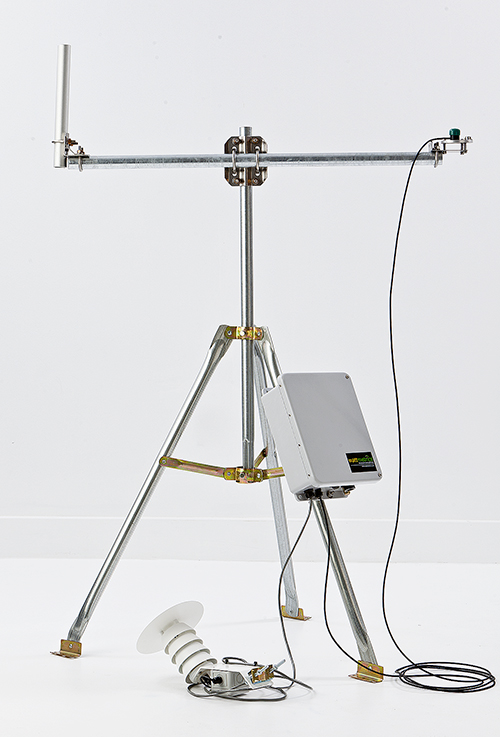

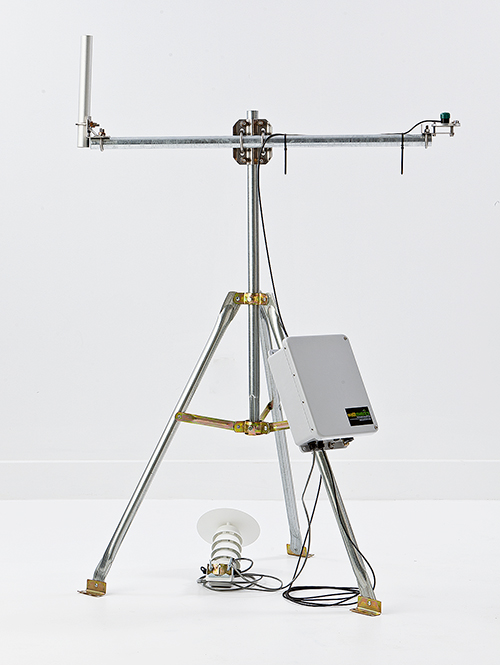

Step 6: secure irradiance sensor cable to crosspiece

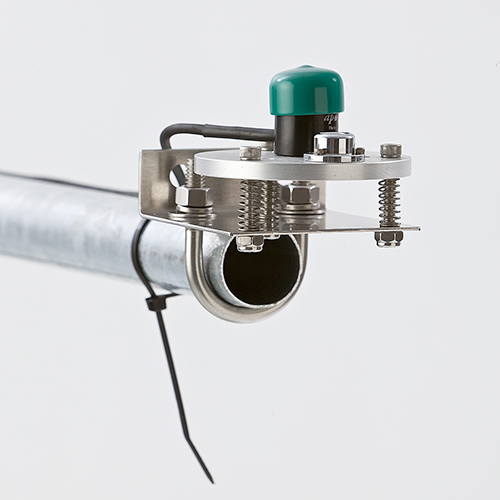

Step 6: irradiance sensor detail

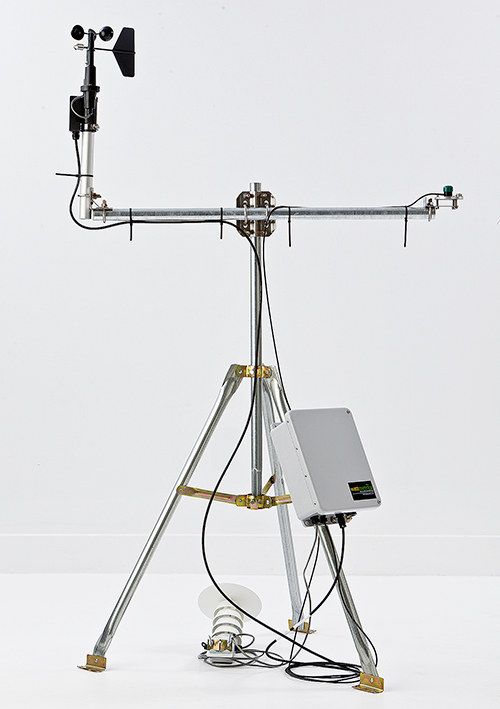

Step 7: mount wind sensors

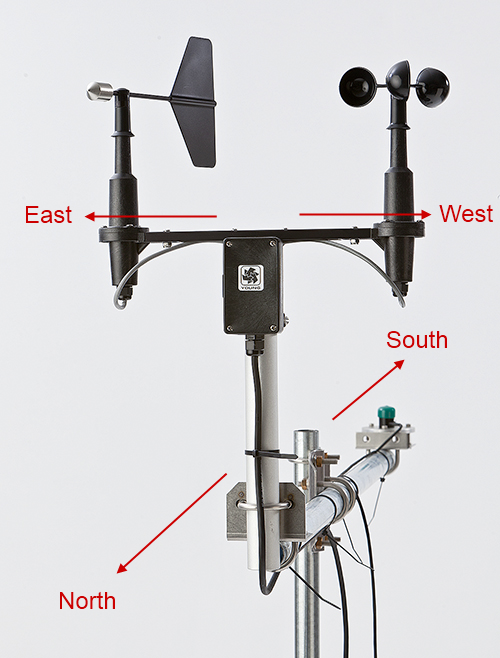

Step 7: wind sensors detail

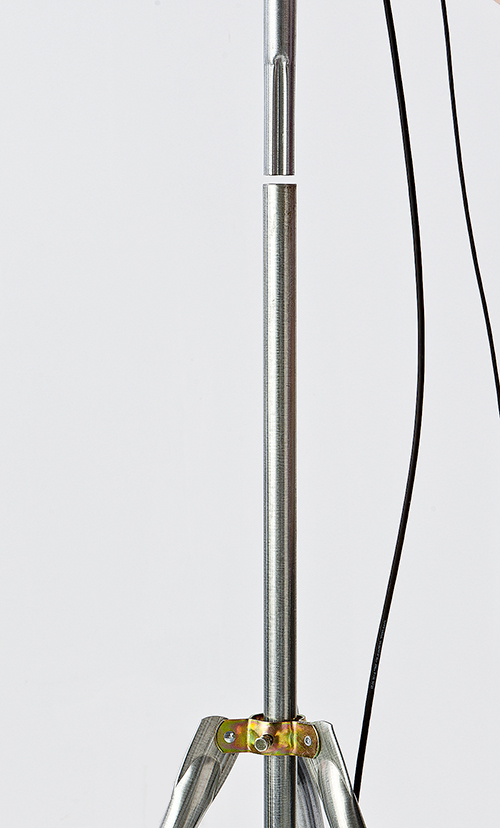

Step 8: add extention pole

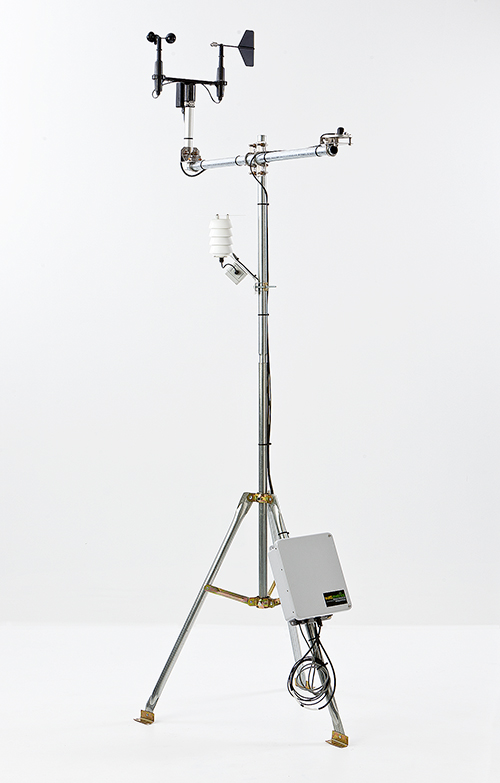

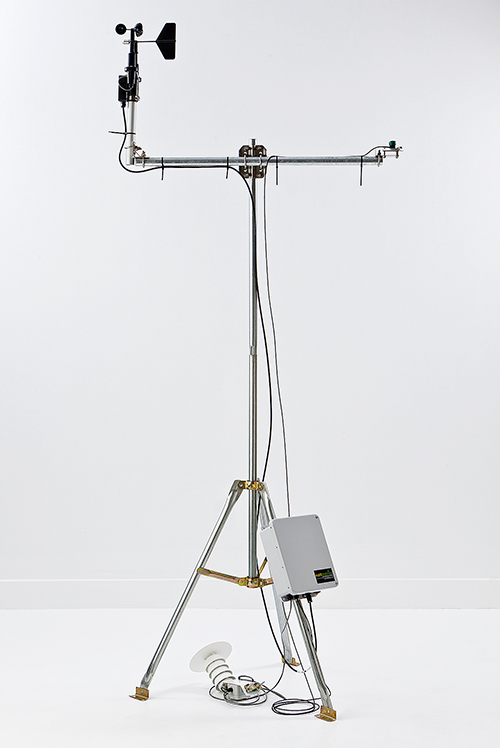

Step 8: instrument tower with extention pole

Step 9: connect wind sensor cable to acquisition module

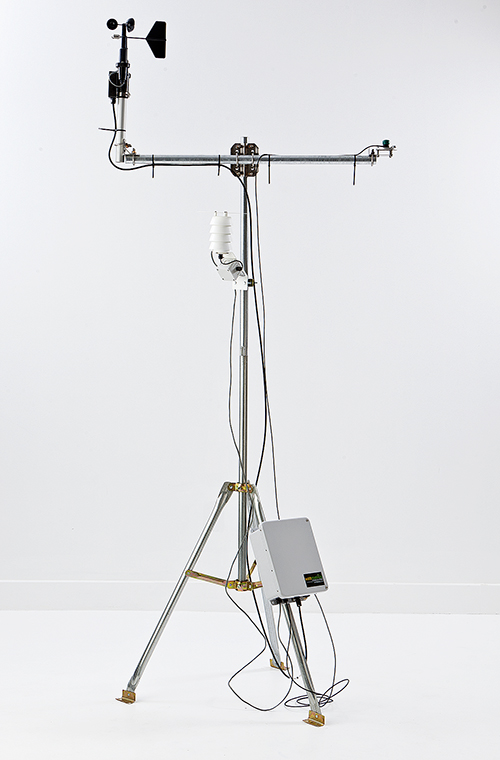

Step 10: mount ambient temp./humidity sensor assembly

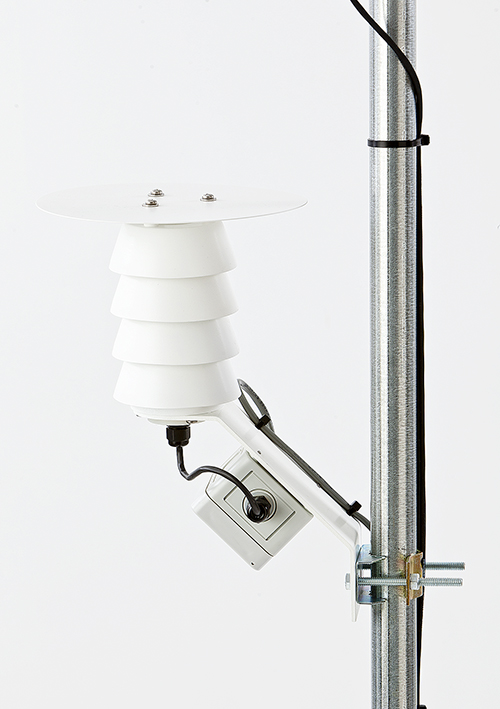

Step 10: ambient temp./humidity sensor assembly detail

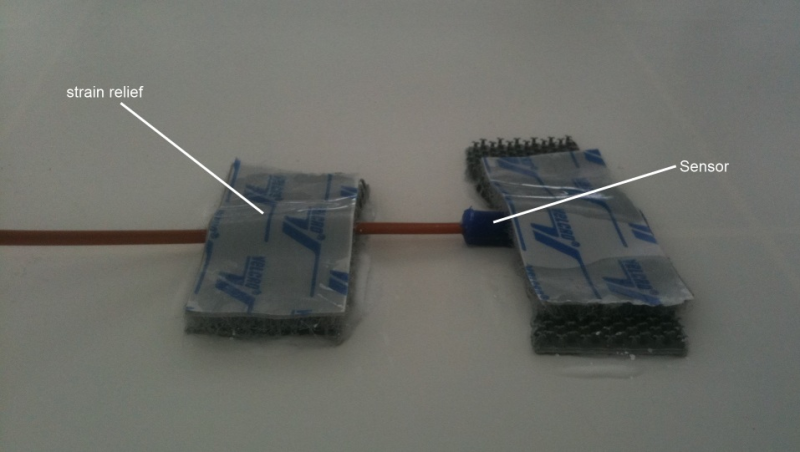

Step 11: attach cell temp. sensor to panel



Step 12: secure all sensor cables

Step 13: ready to connect
